Table of Contents
Chapter 1: Basic Concepts and Classification of Tungsten Alloy Tubes
1.1 Definition and Basic Structure of Tungsten Alloy Tubes
1.2 Introduction to the Material System of High-Specific-Gravity Tungsten Alloy Tubes (W-Ni-Fe / W-Ni-Cu)
1.3 Main Dimensional Parameters, Wall Thickness Range, and Standard Shapes of Tungsten Alloy Tubes
1.4 Classification of Tungsten Alloy Tubes (by Composition, Application, and Process)
1.5 Comparative Analysis of Tungsten Alloy Tubes with Tungsten Rods, Tungsten Plates, and Tungsten-Copper Tubes
Chapter 2: Physical and Mechanical Properties of Tungsten Alloy Tubes
2.1 Density, Specific Gravity, and Dimensional Control Precision of Tungsten Alloy Tubes
2.2 Tensile Strength, Yield Strength, and Fracture Toughness of Tungsten Alloy Tubes
2.3 Hardness, Wear Resistance, and Impact Resistance of Tungsten Alloy Tubes
2.4 Thermal Conductivity, Thermal Expansion Coefficient, and High-Temperature Stability of Tungsten Alloy Tubes
2.5 Electrical Properties, Magnetic Response, and Radiation Resistance of Tungsten Alloy Tubes
2.6 Corrosion Resistance and Chemical Stability Analysis of Tungsten Alloy Tubes
Chapter 3: Preparation and Forming Technology of Tungsten Alloy Tubes
3.1 Raw Material Preparation and Powder Property Analysis for Tungsten Alloy Tubes
3.2 Powder Metallurgy Pressing Technology for Tungsten Alloy Tubes (Molding, Isostatic Pressing)
3.3 Hollow Forming Process and Key Die Design for Tungsten Alloy Tubes
3.4 Sintering Technology and Atmosphere Control Optimization for Tungsten Alloy Tubes
3.5 Heat Treatment Process and Densification Enhancement Technology for Tungsten Alloy Tubes
3.6 Internal and External Surface Treatment of Tungsten Alloy Tubes (Polishing, Electroplating, PVD, etc.)
3.7 New Tungsten Alloy Tube Fabrication Technologies: Extrusion, Rolling, and Additive Manufacturing
Chapter 4: Performance Testing and Quality Assessment of Tungsten Alloy Tubes
4.1 Tungsten Alloy Tube Appearance and Geometric Dimension Testing Methods
4.2 Tungsten Alloy Tube Density Testing and Microstructure Density Characterization
4.3 Tungsten Alloy Tube Mechanical Property Testing Standards (ASTM, GB, ISO)
4.4 Tungsten Alloy Tube Metallographic Analysis and Microstructural Observation
4.5 Tungsten Alloy Tube Chemical Composition and Impurity Testing (ICP, XRF, ONH)
4.6 Tungsten Alloy Tube Wall Thickness Uniformity and Coaxiality Assessment Methods
4.7 Tungsten Alloy Tube Surface and Internal Wall Defect Detection Techniques (Eddy Current, CT, Ultrasonic)
Chapter 5: Typical Application Fields of Tungsten Alloy Tubes
5.1 Tungsten Alloy Tubes for Shielding and Structural Casing in the Nuclear Industry
5.2 Tungsten Alloy Tubes for Structural and Protective Functions in Military Weapon Systems
5.3 Tungsten Alloy Tubes for Protection and Positioning in Medical Radiotherapy Equipment
5.4 Tungsten Alloy Tubes for Inertial Components and High-Temperature Flow Ducts in Aerospace
5.5 Tungsten Alloy Tubes for Heat Dissipation Ducts in Electronics and Communications Equipment
5.6 Tungsten Alloy Tubes for Structural Support in Industrial Molds and Wear-Resistant Liners
Chapter 6: Research and Development and Innovation Direction of Special Tungsten Alloy Tubes
6.1 Preparation and Performance Optimization of Nanoparticle-Reinforced Tungsten Alloy Tubes
6.2 Design Strategies and Microstructure Control of Microalloyed Tungsten Alloy Tubes
6.3 Composite Electrical, Thermal, and Antimagnetic Properties of Multifunctional Tungsten Alloy Tubes
6.4 Microstructural Thermal Stability and Heat Treatment Paths of High-Temperature Tungsten Alloy Tubes
6.5 Study on the Interface Bonding Mechanism of W-Cu/W-Ni Composite Tungsten Alloy Tubes
6.6 Surface Coatings and Corrosion Resistance Enhancement Technologies for Functionalized Tungsten Alloy Tubes
Chapter 7: International Standards and Compliance System for Tungsten Alloy Tubes
7.1 Chinese National/Industry Standards for Tungsten Alloy Tubes (GB/T, YS/T)
7.2 Interpretation of the US Standard System (ASTM, MIL) for Tungsten Alloy Tubes
7.3 EU and ISO International Standard Requirements for Tungsten Alloy Tubes
7.4 Environmental Compliance Requirements for Tungsten Alloy Tubes (RoHS, REACH, MSDS)
7.5 Quality Systems for Tungsten Alloy Tubes in Aviation, Nuclear Power, and Medical Applications (AS9100, ISO13485)
Chapter 8: Packaging, Storage, and Transportation Specifications for Tungsten Alloy Tubes
8.1 Packaging Material Selection and Protection Design (Vacuum, Drying, Buffering) for Tungsten Alloy Tubes
8.2 Storage Conditions and Anti-Corrosion and Anti-Oxidation Requirements for Tungsten Alloy Tubes
8.3 International Transportation Specifications for Tungsten Alloy Tubes
8.4 Customs Supervision and License Application for Tungsten Alloy Tube Export
Chapter 9: Industrial Structure and Market Trend of Tungsten Alloy Tubes
9.1 Global Tungsten Resource Overview and Tungsten Alloy Tube Industry Chain Analysis
9.2 Market Capacity and Demand Growth Trend Forecast for Tungsten Alloy Tubes
9.3 Introduction to CTIA GROUP Tungsten Alloy Tubes
9.4 Impact of Tungsten Alloy Tube Raw Material Price Fluctuations and Cost Structure
9.5 Emerging Demand and Policy Direction for Tungsten Alloy Tubes in High-End Manufacturing
9.6 Technical Barriers and Further Development Paths for the Tungsten Alloy Tube Industry
Chapter 10: Research Frontiers and Future Development of Tungsten Alloy Tubes
10.1 Research on High Densification and Complex Shape Forming of Tungsten Alloy Tubes
10.2 Exploration of Additive Manufacturing Integration and Intelligent Manufacturing of Tungsten Alloy Tubes
10.3 Integrated Development and Application Expansion of Multifunctional Tungsten Alloy Composite Tubes
10.4 Performance Evolution of Tungsten Alloy Tubes in Extreme Service Environments
10.5 Sustainable Development Strategies and Alternative Materials Research for Tungsten Alloy Tubes
Appendix
Appendix 1: Common Physical/Mechanical Properties of Tungsten Alloy Tubes
Appendix 2: Comparison of Common Brands and Chemical Compositions of Tungsten Alloy Tubes
Appendix 3: Compilation of Relevant Standard Documents and Technical Data on Tungsten Alloy Tubes
Appendix 4: Tungsten Alloy Tube Glossary and English Abbreviations
Chapter 1 Basic Concepts and Classification of Tungsten Alloy Tubes

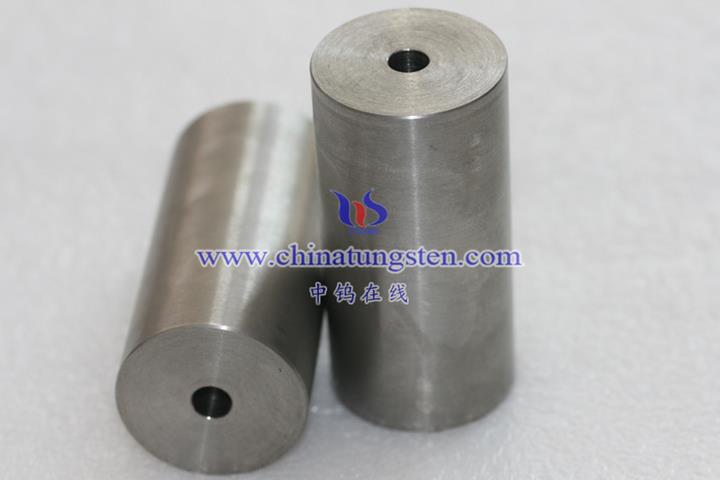

1.1 Definition and basic structure of tungsten alloy tube
Tungsten alloy tubes are an advanced functional structural material composed primarily of high-melting-point, high-density tungsten (W) alloyed with other metal elements such as nickel (Ni), iron (Fe), copper (Cu), and molybdenum (Mo) in specific proportions. These tubes are manufactured through powder metallurgy or other forming processes into hollow, cylindrical, or shaped tubes. Tungsten alloy tubes combine tungsten’s high density and high-temperature stability with the ductility, machinability, and comprehensive physical properties imparted by the alloying elements. They are widely used in the nuclear industry, aerospace, military equipment, medical protection, electronic packaging, and high-temperature process systems.
- Define hierarchical parsing
From the perspective of composition structure, the core of tungsten alloy tube is composed of 90% to 98% tungsten. By forming a dense and uniform metal matrix with 1% to 10% of metal elements such as Ni, Fe, and Cu, it not only maintains the high specific gravity of tungsten (density can reach 17.0 to 18.5 g/cm³), but also obtains a certain degree of plasticity and machinability.
From a structural perspective, tungsten alloy tubes typically appear as hollow tubular products with circular or rectangular cross-sections. Their wall thickness, length, inner diameter, and outer diameter can be flexibly customized based on application requirements. Typical wall thicknesses range from 0.5 mm to 10 mm, and lengths can reach tens of centimeters or even meters. Depending on the operating environment, cross-sectional shapes can also be designed as elliptical, polygonal, or layered composite structures to meet stress distribution requirements under specific working conditions.
In terms of manufacturing methods, tungsten alloy tubes are primarily manufactured using powder metallurgy, which involves mixing tungsten-based powder with alloying elements in a proportional manner, pressing and forming the mixture, and then densifying and sintering it under a high-temperature protective atmosphere to form a highly dense, high-strength tungsten alloy billet. This is then machined, rolled, or extruded to create a hollow tube with the desired dimensions and surface accuracy. Furthermore, in recent years, advanced manufacturing processes such as cold isostatic pressing (CIP), hot isostatic pressing (HIP), and laser additive manufacturing have also been applied to the high-performance production of tungsten alloy tubes.
- Structural characteristics and performance advantages
Tungsten alloy tubes have significant advantages in functional applications due to their tubular structure:
- Synergistic properties of high specific gravity and hollow design : The high density of tungsten enables tungsten alloy tubes to achieve a large mass distribution in a small volume , making them particularly suitable for use as inertial parts, counterweight elements, radiation shielding sleeves, etc. The tubular structure helps to reduce the load on non-functional areas and improve the integration efficiency of the system.
- Good thermal and electrical properties : Tungsten alloy tubes have excellent thermal stability and thermal conductivity at high temperatures, making them suitable for use as high-temperature fluid conduits, thermal field structures, and thermal shielding enclosures in vacuum devices. Furthermore, their low resistivity makes them useful in certain electromagnetic shielding, discharge devices, and electric heating elements.
- Strong controllability in structural processing : Compared with pure tungsten, tungsten alloy has a certain degree of machinability while maintaining basic strength due to the introduction of alloying elements with better ductility. It can obtain high-precision inner and outer diameter dimensions and surface roughness through turning, inner diameter grinding, polishing, etc., meeting high-demand assembly needs.
- Strong radiation resistance, corrosion resistance, and fatigue resistance : Tungsten alloy tubes are primarily used in high-radiation environments such as nuclear power plants and radiotherapy equipment. Their excellent shielding properties and structural stability make them a preferred material for neutron-absorbing sleeves and gamma-ray blocking components. Surface treatments (such as nickel plating and PVD coatings) can further enhance corrosion resistance and extend service life.
- Structural Differences from a Classification Perspective
Tungsten alloy tubes often exhibit different characteristics in structural design according to different classification methods, such as:
- Classification by inner diameter/wall thickness ratio : Thin-walled tungsten alloy tubes (wall thickness <1 mm) are mostly used in situations with strict quality and space requirements, such as aerospace inertial parts; thick-walled tungsten alloy tubes are used in pressure-bearing and impact-resistant environments, such as core jackets and pressure cylinders.
- Classification by forming method : molded type, hollow extrusion type, rolled welding type, etc., each corresponding to different dimensional accuracy and cost control capabilities.
- Classification by application function : structural support type (such as guide tubes, frame tubes), shielding and protection type (such as radiation protection covers), heat transfer and electrical conductivity type (such as high-temperature thermal field tubes), etc.
- Differences between tungsten alloy tubes and traditional tubes
Compared with traditional pipes such as stainless steel, copper alloy, and titanium alloy, tungsten alloy pipes are unique in the following aspects:
- Higher density, stronger radiation resistance, and can achieve the same or higher barrier effect with thinner tube walls;
- The high melting point ( tungsten reaches 3410°C) gives it excellent high-temperature structural stability;
- Electromagnetic opacity makes it suitable for shielding and suppression structures in special bands;
- The structural strength is higher than that of titanium alloy, the wear resistance is better than that of copper alloy, and the corrosion resistance can be enhanced by coating.
- Summary
In summary, tungsten alloy tubes are a type of hollow structural material that combines high density, high strength, excellent thermal stability, and functional diversity. Its definition is not limited to the form of a “tube,” but also represents an engineering material system with extremely strong composite properties. With the continuous advancement of preparation technology and application requirements, the structural form and functional configuration of tungsten alloy tubes will continue to evolve, developing towards higher precision, lighter weight, and more integrated directions.
