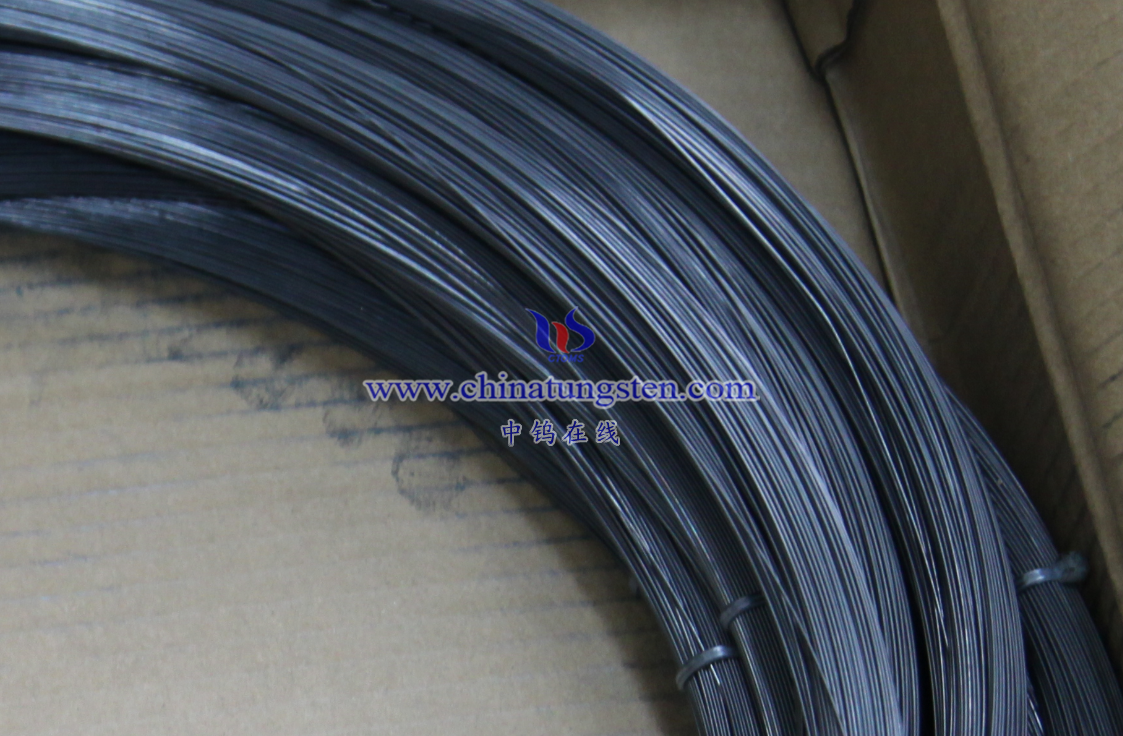

Black tungsten wire is primarily used in electron tubes as a cathode for electron emission, a heater, or a support structure. It is widely applied in devices such as vacuum tubes, X-ray tubes, and microwave tubes, playing a significant role in early electronic technology and high-power applications.
Cathode (Thermionic Emitter) Black tungsten wire is commonly used as a cathode material in electron tubes, serving as either a directly heated cathode or a heater for indirectly heated cathodes.
- Directly Heated Cathode: When electric current passes through the tungsten wire, it is heated to high temperatures (approximately 2200–2500°C), enabling thermionic emission of electrons. This is used for signal amplification or rectification in early vacuum tubes, such as triodes or diodes.
- Indirectly Heated Cathode: The tungsten wire acts as a heater to raise the temperature of the cathode surface (e.g., an oxide-coated cathode) to emit electrons. This method is widely used in high-performance electron tubes, such as transmitter or receiver tubes.
Grid Support Structure Due to its high strength and resistance to high temperatures, black tungsten wire is sometimes used as a support structure for the grid in electron tubes. The grid requires precise control of electron flow, and the mechanical stability and corrosion resistance of tungsten wire make it suitable for securing the grid in high-temperature, high-vacuum environments.
Anode or Collector Auxiliary Structure In certain specialized electron tubes (e.g., high-power transmitter tubes), black tungsten wire may be used in auxiliary structures for the anode or collector. Its ability to withstand high voltages and temperatures ensures structural stability.
Applications in Specialized Electron Tubes
- X-ray Tubes: Black tungsten wire is used as a cathode to emit electrons in X-ray tubes. The electron beam bombards the target to generate X-rays, with tungsten’s high emission efficiency and heat resistance making it an ideal choice.
- Microwave Tubes (e.g., Magnetrons, Traveling Wave Tubes): Black tungsten wire serves as a cathode or heater, providing stable thermionic emission to support the generation and amplification of microwave signals.
- Photomultiplier Tubes: Tungsten wire may be used in the cathode or electrode structures of some photomultiplier tubes.
