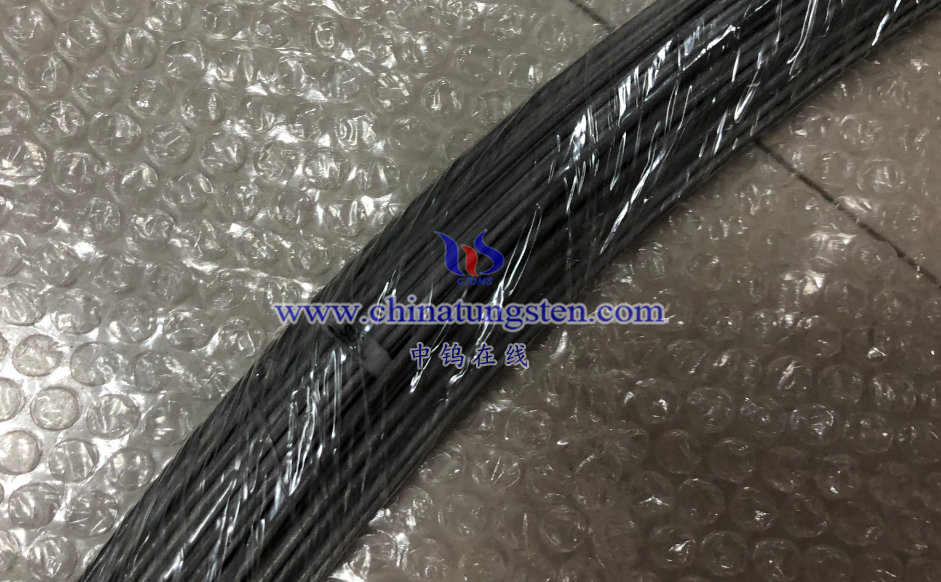

The primary use of black tungsten wire in X-ray equipment is as the cathode (filament) material in X-ray tubes. Its role and characteristics are as follows:
1. Thermionic Emission Source
- Principle: In an X-ray tube, a high-voltage electric field accelerates electrons to strike a metal target (anode), generating X-rays. Black tungsten wire, serving as the cathode, is heated by an electric current to high temperatures (approximately 2000–3000°C), causing surface electrons to gain sufficient energy to escape, forming a thermionic electron cloud.
- Advantages: Tungsten’s extremely high melting point (3422°C) and low recrystallization temperature allow it to maintain structural stability at high temperatures, preventing lifespan reduction due to evaporation or deformation. Surface treatments of black tungsten wire (e.g., carburization) can further reduce the work function, enhancing emission efficiency.
2. High Stability and Durability
- Evaporation Resistance: Tungsten’s low vapor pressure results in minimal evaporation at high temperatures, ensuring the cathode’s long-term stability and consistent X-ray output.
- Contamination Resistance: The surface of black tungsten wire may be treated with oxidation or carburization to form a protective layer, reducing reactions with residual gases and extending filament lifespan.
3. Comparison with Other Materials
- Versus Thoriated Tungsten Wire: Traditional tungsten wire may be doped with thorium (Th) to lower the work function (e.g., thoriated tungsten wire), but thorium is radioactive. Modern equipment often uses non-radioactive alternatives, such as surface-treated black tungsten wire.
- Versus Lanthanum Hexaboride (LaB₆): While LaB₆ offers higher emission efficiency, it is costly and brittle. Black tungsten wire provides a better balance of cost-effectiveness and mechanical strength.
4. Application Scenarios
- Medical X-ray Machines: In devices like CT scanners and digital radiography (DR) equipment, reliable long-term operation is critical, and black tungsten wire’s durability is essential.
- Industrial Non-Destructive Testing: In high-temperature or high-radiation environments, black tungsten wire’s durability outperforms other materials.
- Scientific Research Equipment: In applications such as synchrotron radiation sources, black tungsten wire serves as the cathode in electron guns, supporting the generation of high-brightness, stable electron beams.
